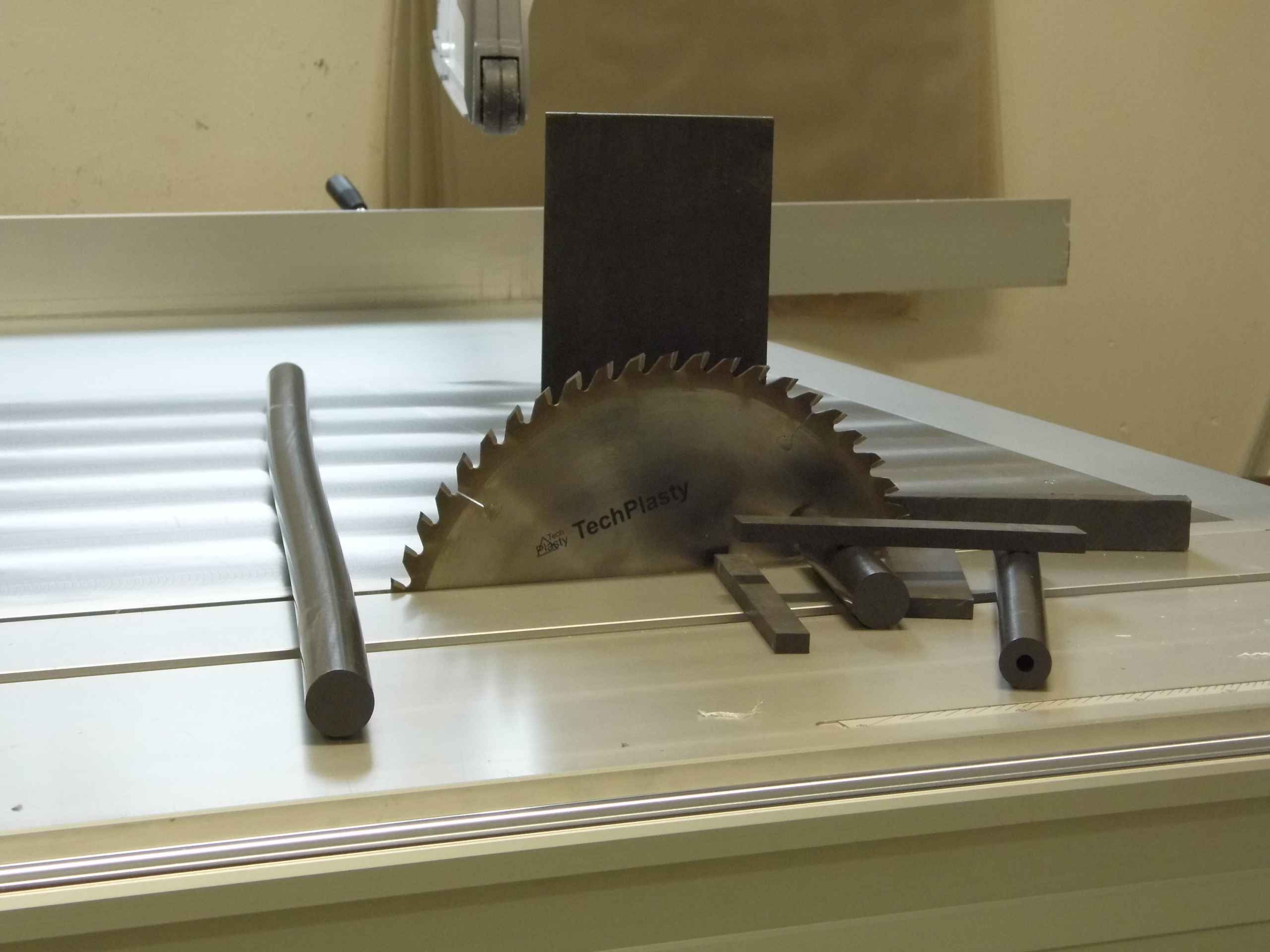

PTFE+25%Carbon - teflon carbon filled
Carbon filled PTFE is primarily used in applications where higher thermal or electrical conductivity is required, over and above conventional PTFE. This grade also exhibits improved wear life and has very good compression properties, for loading applications. Carbon filled PTFE has good abrasion resistance, load bearing, wear and frictional properties under sliding conditions, ranging from dry to fully lubricated systems.
- dynamic applications at high speed, as the thermal conductivity decreases the wear of the material resulting from heat buildup.
- seal rings, piston rings and compressor rings.
- higher load gasketing applications
- carbon is one of the best fillers to use in water applications.
- Chemically inert to all known industrial chemicals;
- Low co-efficient of friction, non-stick & non-toxic;
- Wide temperature range (-260°C to +260 °C);
- Exhibits excellent permeation resistance;
- Excellent dielectric properties;
Group of materials Teflon:
Engineering plastics and their products can be ordered from TechPlasty. Materials in the same group from different manufacturers are not always directly interchangeable because they may not all have the same technical parameters. Our technical consultants, who have many years of experience in the field of engineering plastics, will be pleased to advise you on the differences in the individual materials, especially in the boundary conditions. Detailed technical data of individual manufacturers' materials can be found in their data sheets.
